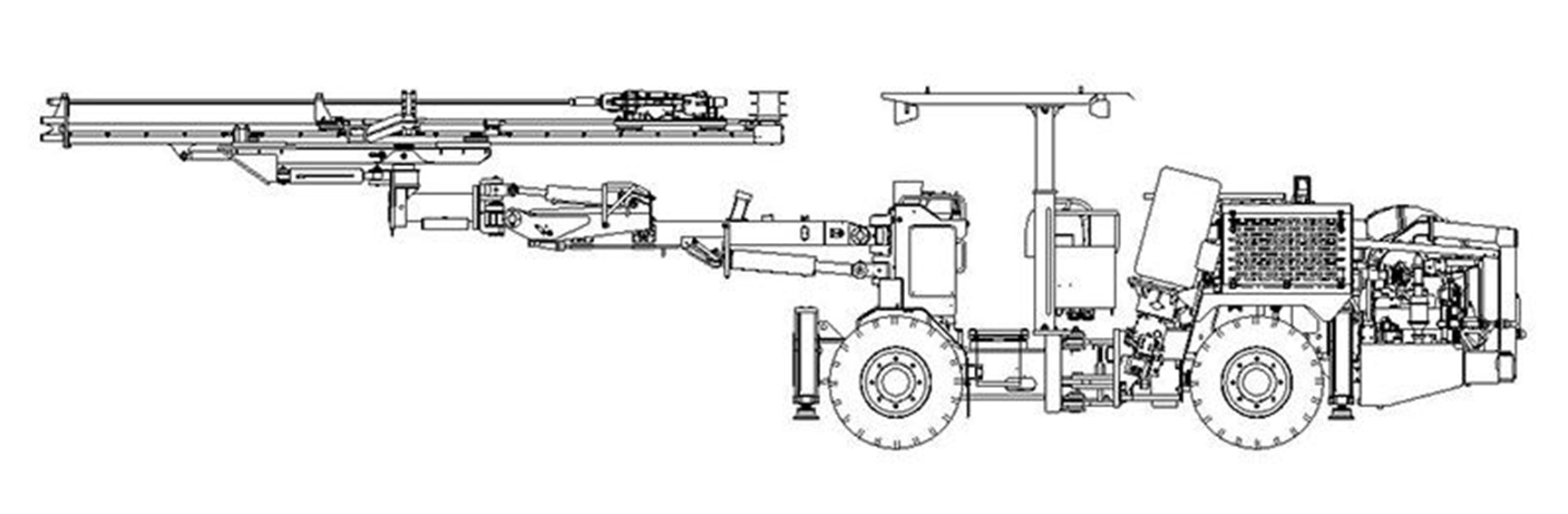

Hydraulic Drilling Jumbos, CYTJ45 (TDS81)

PRODUCT TYPE

Request a personalized quote

Features

Powerful drilling capabilities. This makes it an ideal machine for use in large-scale drilling projects, such as those used in mining and tunneling operations.
Advanced hydraulic system. This means that the CYTJ45 can complete drilling projects quickly and efficiently, reducing the time and cost of drilling operations.
Be easy to operate and maintain. It features a user-friendly control panel that allows operators to easily control the machine's movements and drilling operations.


Parameter
Power (drifter)	20 kW / 18 kW /18.8 kW
Total length (feed)	5450 / 6040 mm
Hole depth	3370 / 3970 mm
Boom extension	1250mm
Boom swing angle	±35°
Boom (lift/tilt angle)	53° 30°
Overall weight	13.5 T
Cable length	70 m
Feed force	13 / 13 /15 kN
Overall dimensions (L×W×H)	12000×1850×2280（2880）mm
